🏥 Hospital Management System (HMS)
Enterprise-grade role-based hospital management system for streamlined clinical, administrative, and operational workflows.
📌 Problem Statement
Hospitals require centralized control over patient records, doctor management, department administration, appointment scheduling, prescriptions, and audit tracking.
Manual or disconnected systems introduce inefficiencies, security risks, and poor traceability.
This system provides a structured, secure, database-driven platform to manage multi-role healthcare operations in a unified environment.
👥 Target Users & Capabilities
🔐 Admin
- Manage Doctors, Patients, Departments
- Monitor Appointments
- View Audit Logs
- Access system-wide operational data
🩺 Doctor
- View assigned appointments
- Manage patient records
- Create prescriptions
- Access medical reports
🧑⚕️ Patient
- Access dashboard
- View appointments
- View prescriptions
- Access medical reports
🚀 Technology Stack
- Java 11+
- Jakarta Servlet 6.0 (Jakarta EE 10)
- JSP (Server-Side Rendering)
- JDBC
- MySQL 8.x
- Apache Tomcat 10+
- mysql-connector-j-9.1.0
🏗 Architecture
Architecture Style
- Layered Architecture
- MVC Pattern
- DAO Pattern
- Monolithic Deployment
Layer Breakdown
Presentation Layer → JSP
Controller Layer → Servlets
Business Logic → Embedded within Servlets
Data Access Layer → DAO + DAOImpl
Model Layer → POJOs
Security Layer → Filters (AuthFilter, RoleFilter)
Request Flow
Client → Servlet → DAO → Database → JSP Response
📦 Major Modules
🔐 Authentication Module
- LoginServlet
- LogoutServlet
- Session-based authentication
- Role-based filtering
👤 User Management
- Users entity
- Role control and validation
👨⚕️ Doctor Management
- CRUD operations
- Department mapping
- Consultation fee tracking
🧑⚕️ Patient Management
- CRUD operations
- Profile management
🏥 Department Management
- Department CRUD
- Medical specialization classification
📅 Appointment Management
- Book appointments
- Doctor-specific scheduling
- Status tracking (Completed, Cancelled, Scheduled)
💊 Prescription Management
- Prescription entity
- Appointment-based linkage
- DAO-driven persistence
🧾 Medical Reports Module
- MedicalReports entity
- Database-stored report entries
- Report type classification (MRI, ECG, BLOOD_TEST, etc.)
📊 Admin Dashboard
- System overview
- Operational visibility
📝 Audit Logging
- Tracks critical system actions
- Maintains traceability
🔒 Security Implementation
- Session-based authentication
- Role-based authorization
- AuthFilter for login protection
- RoleFilter for endpoint-level access control
- Restricted dashboard access per role
- Direct JSP access prevention
📁 Project Structure
Hospital_Management_System/ │ ├── src/ │ └── main/ │ ├── java/ │ │ └── com/ │ │ └── hospital/ │ │ ├── dao/ │ │ │ ├── AppointmentsDAO.java │ │ │ ├── AuditLogsDAO.java │ │ │ ├── DepartmentsDAO.java │ │ │ ├── DoctorsDAO.java │ │ │ ├── MedicalReportsDAO.java │ │ │ ├── PatientsDAO.java │ │ │ ├── PrescriptionsDAO.java │ │ │ └── UsersDAO.java │ │ │ │ │ ├── daoimpl/ │ │ │ ├── AppointmentsDAOImpl.java │ │ │ ├── AuditLogsDAOImpl.java │ │ │ ├── DepartmentsDAOImpl.java │ │ │ ├── DoctorsDAOImpl.java │ │ │ ├── MedicalReportsDAOImpl.java │ │ │ ├── PatientsDAOImpl.java │ │ │ ├── PrescriptionsDAOImpl.java │ │ │ └── UsersDAOImpl.java │ │ │ │ │ ├── model/ │ │ │ ├── Appointments.java │ │ │ ├── AuditLogs.java │ │ │ ├── Departments.java │ │ │ ├── Doctors.java │ │ │ ├── MedicalReports.java │ │ │ ├── Patients.java │ │ │ ├── Prescriptions.java │ │ │ └── Users.java │ │ │ │ │ ├── servlet/ │ │ │ ├── AdminDashboardServlet.java │ │ │ ├── AppointmentsServlet.java │ │ │ ├── DepartmentsServlet.java │ │ │ ├── DoctorAppointmentsServlet.java │ │ │ ├── DoctorDashboardServlet.java │ │ │ ├── DoctorsServlet.java │ │ │ ├── LoginServlet.java │ │ │ ├── LogoutServlet.java │ │ │ ├── PatientDashboardServlet.java │ │ │ ├── PatientsServlet.java │ │ │ ├── PrescriptionsServlet.java │ │ │ ├── RegisterServlet.java │ │ │ └── ReportUploadServlet.java │ │ │ │ │ ├── filter/ │ │ │ ├── AuthFilter.java │ │ │ └── RoleFilter.java │ │ │ │ │ └── util/ │ │ └── DBConnection.java │ │ │ └── webapp/ │ ├── META-INF/ │ ├── WEB-INF/ │ │ ├── lib/ │ │ │ └── mysql-connector-j-9.1.0.jar │ │ └── web.xml │ │ │ ├── admin-dashboard.jsp │ ├── appointment-form.jsp │ ├── appointments.jsp │ ├── department-form.jsp │ ├── departments.jsp │ ├── doctor-dashboard.jsp │ ├── doctor-appointments.jsp │ ├── doctor-form.jsp │ ├── doctors.jsp │ ├── error.jsp │ ├── login.jsp │ ├── patient-dashboard.jsp │ ├── patient-profile.jsp │ ├── prescription-form.jsp │ ├── register.jsp │ ├── report-form.jsp │ └── reports.jsp │ ├── database/ │ └── hospital_schema.sql │ ├── screenshots/ │ ├── register.png │ ├── medical-reports.png │ ├── doctors.png │ ├── appointments.png │ ├── departments.png │ ├── login.png │ ├── admin-dashboard.png │ ├── doctor-dashboard.png │ └── patient-dashboard.png │ └── README.md
🗄 Database
Database: MySQL 8.x
Connection: JDBC
Utility Class: DBConnection.java
Schema file located at:
database/hospital_schema.sql
Includes:
- Referential integrity constraints
- Foreign key relationships
- Audit logging table
- Role-based user model
📸 Application Screenshots
📝 Registration Page

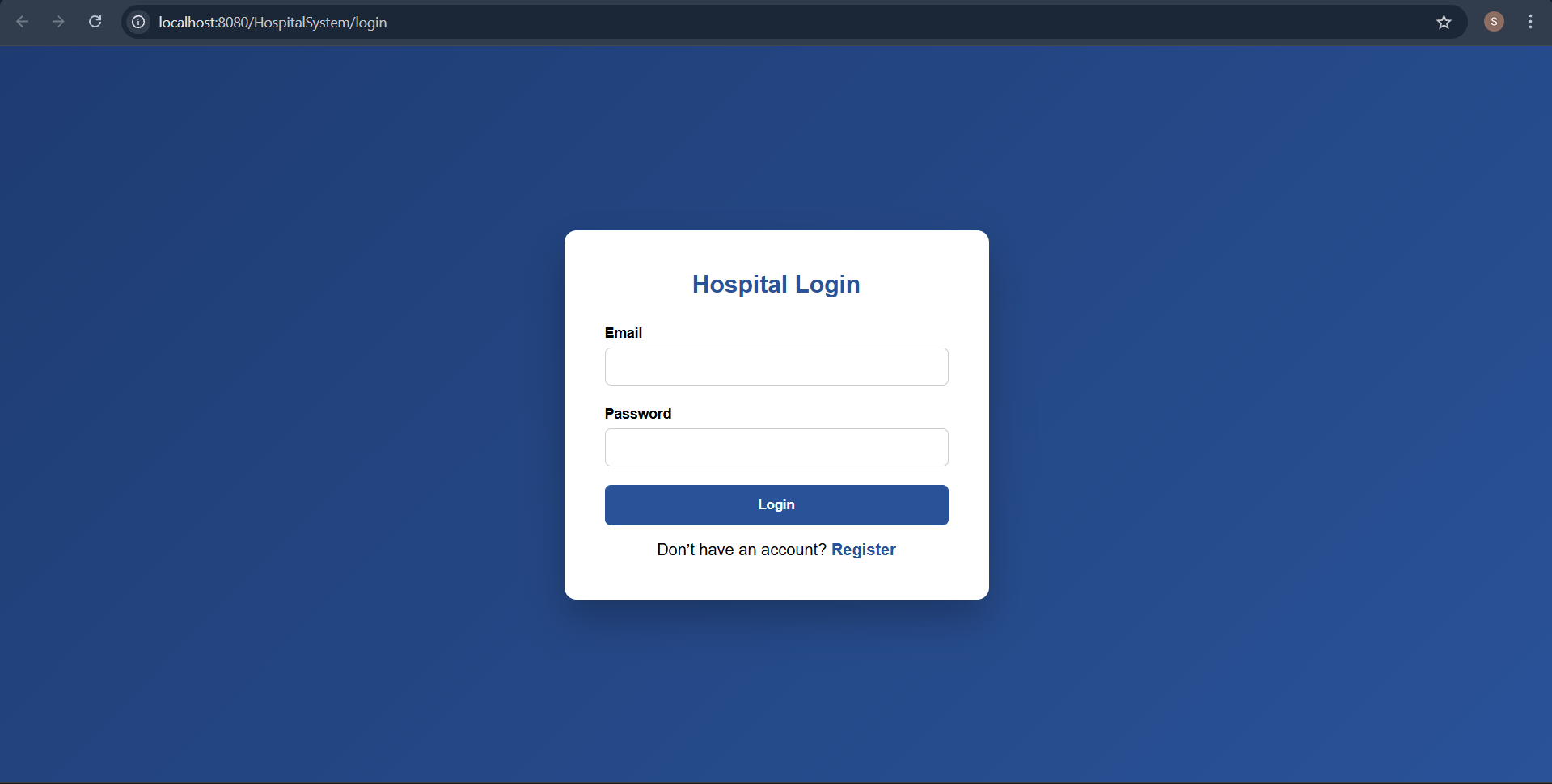

🔐 Login Page

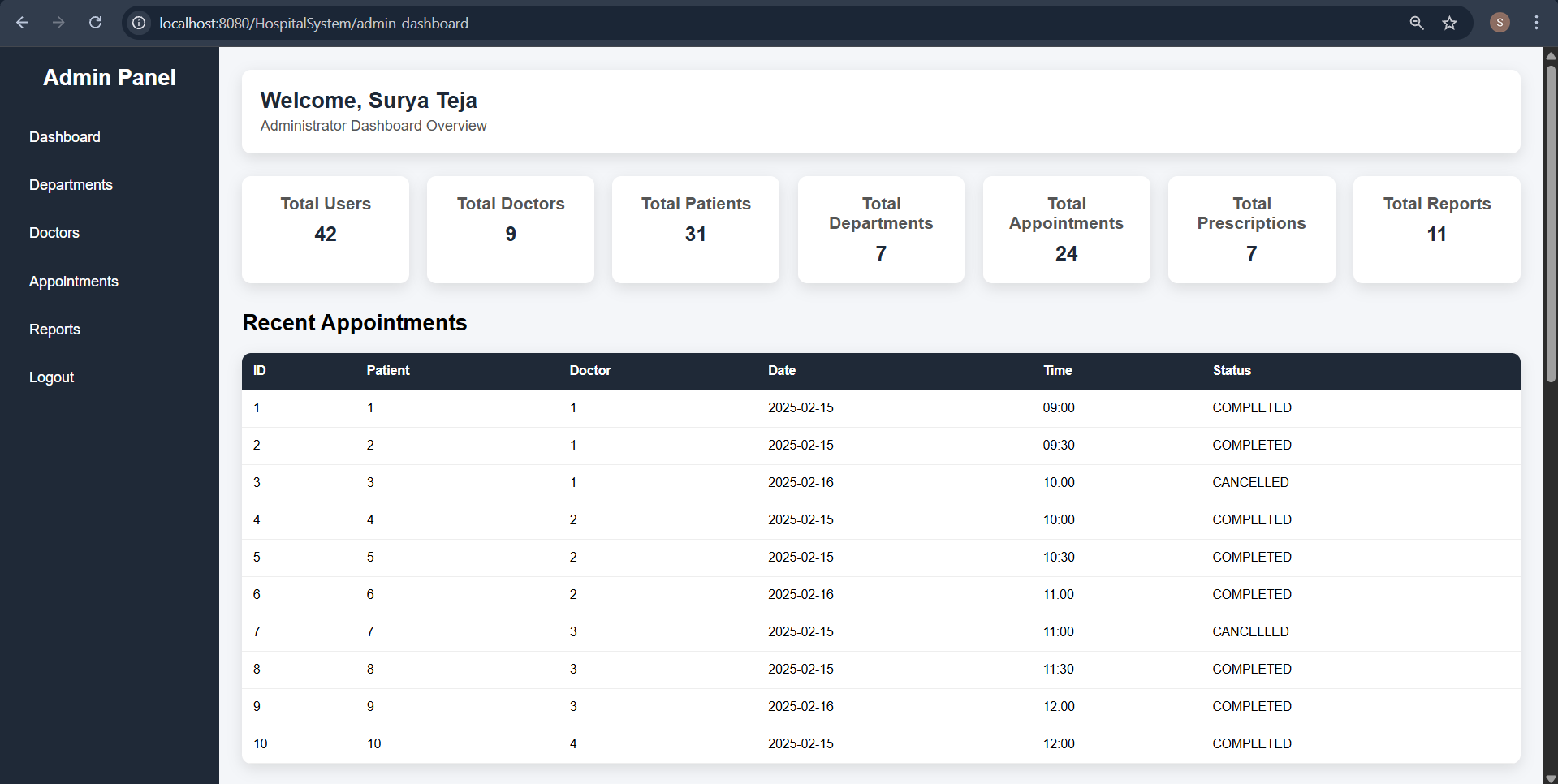

🧑💼 Admin Dashboard

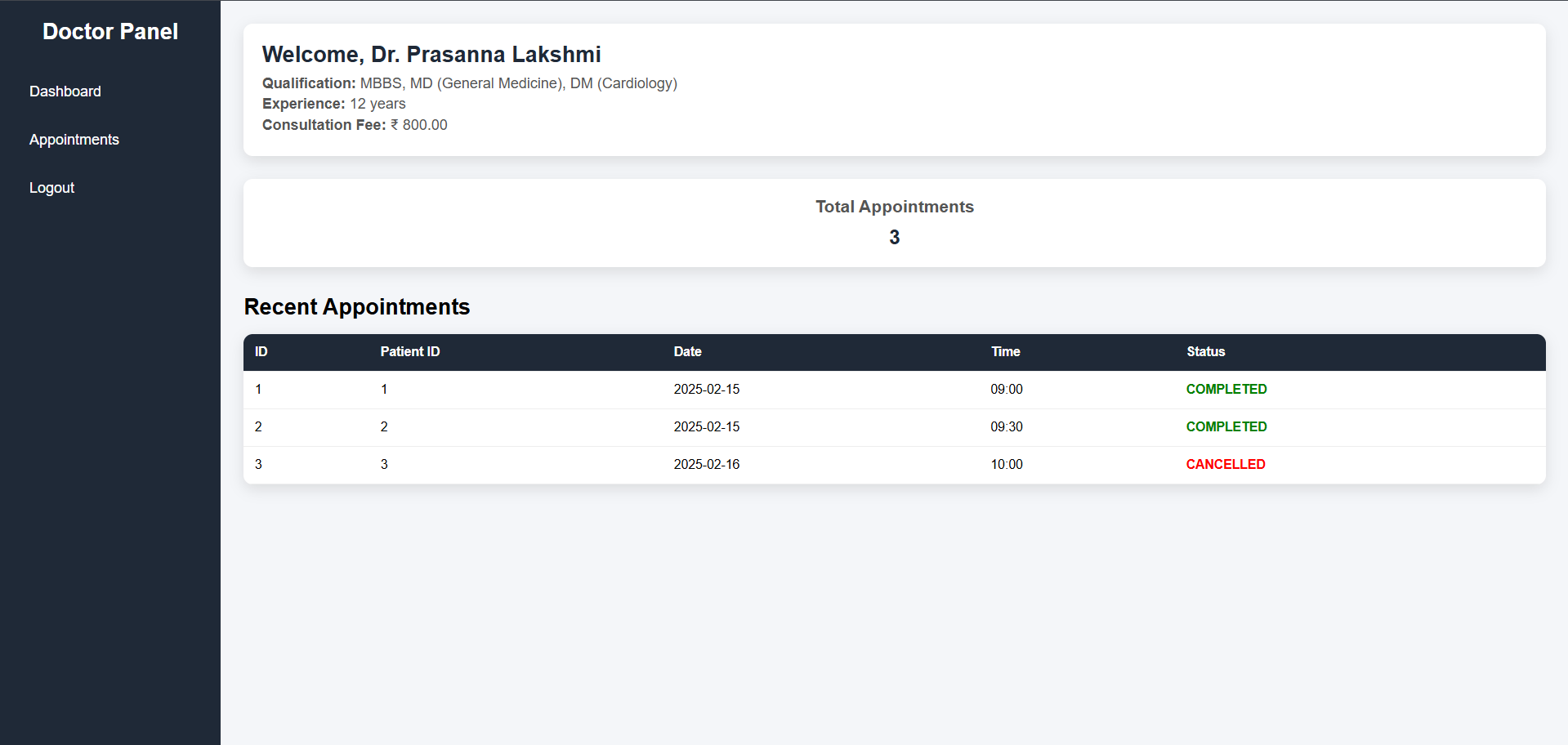

🩺 Doctor Dashboard

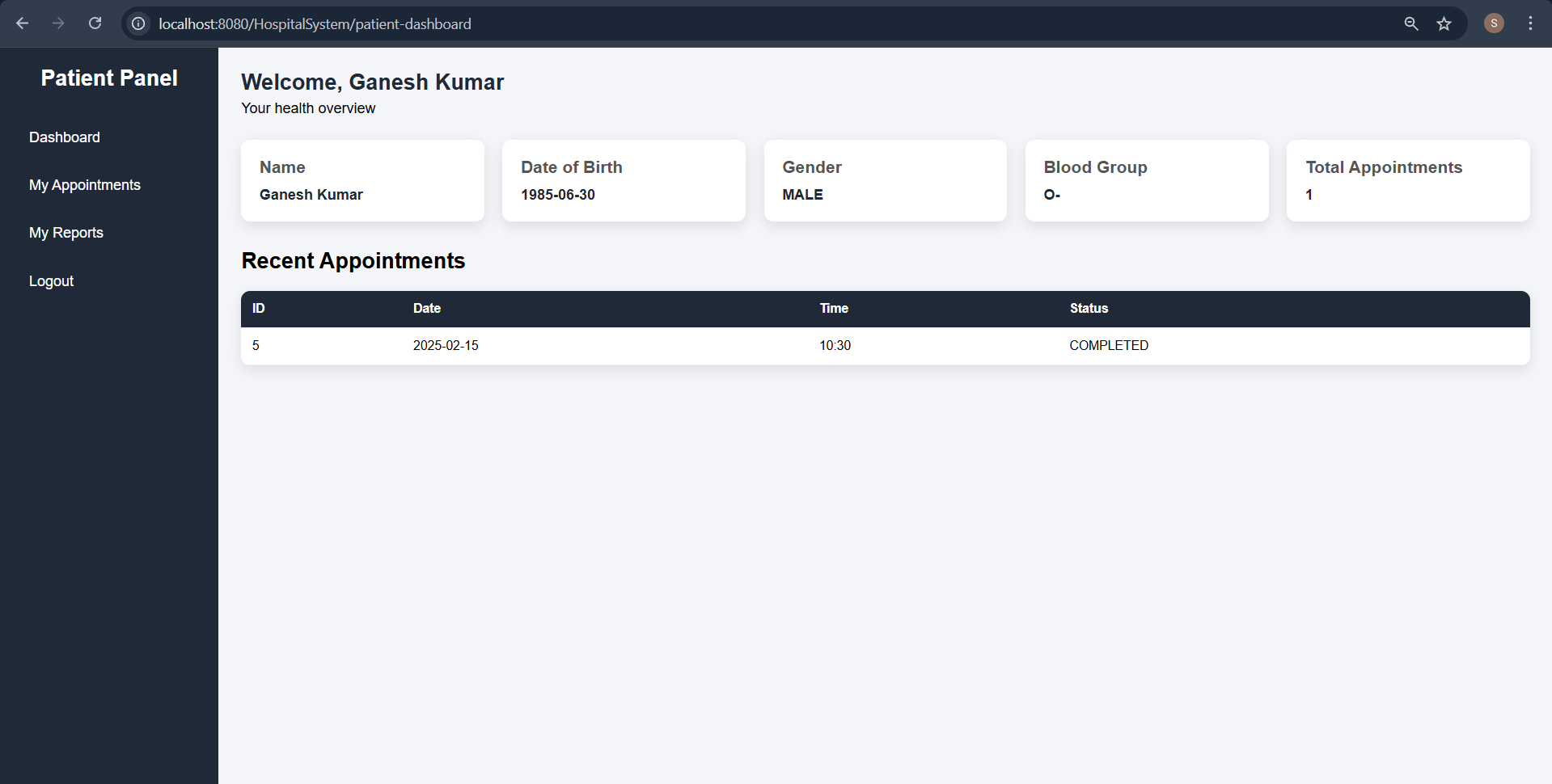

🧑⚕️ Patient Dashboard

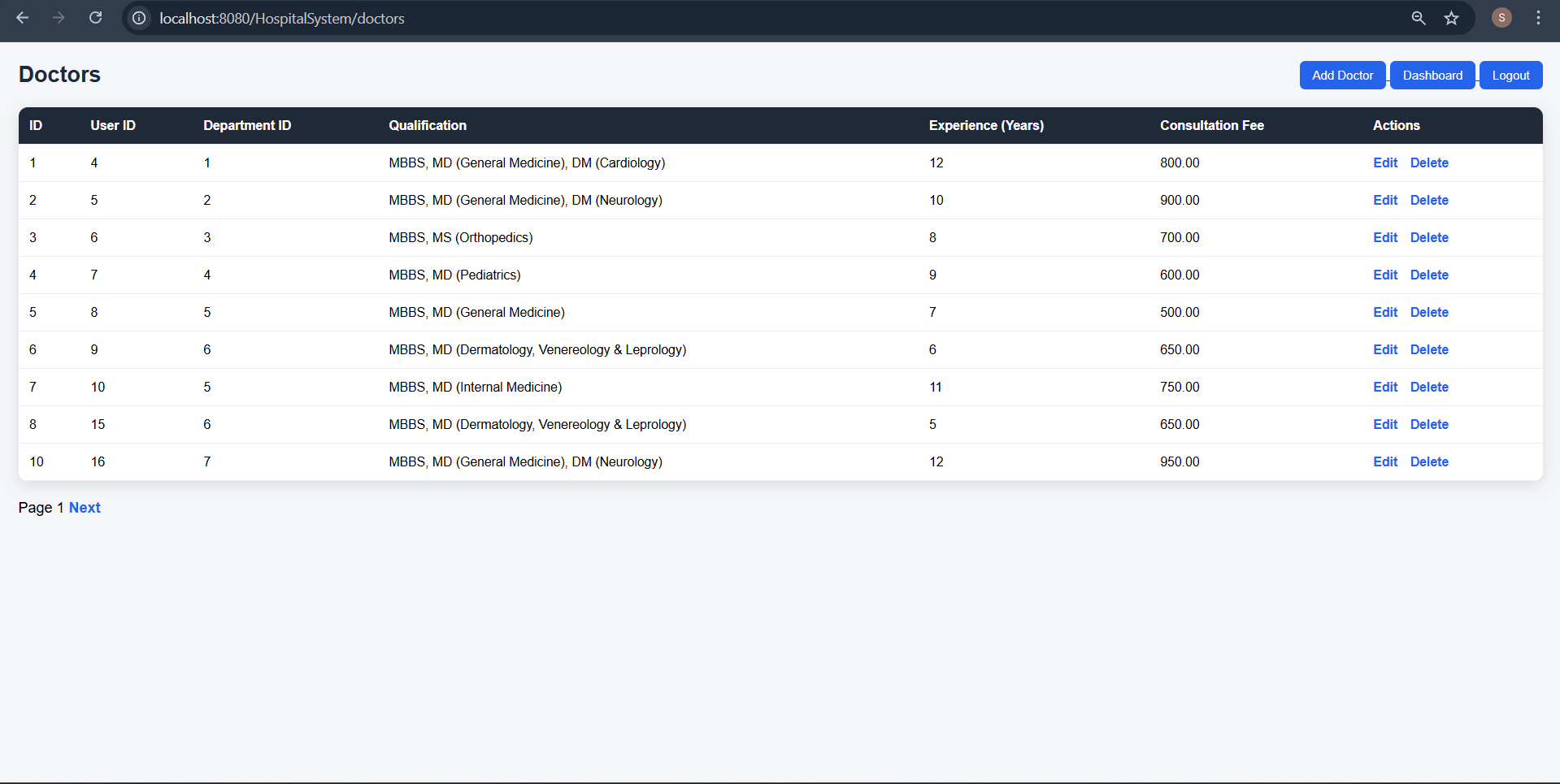

👨⚕️ Doctors Management

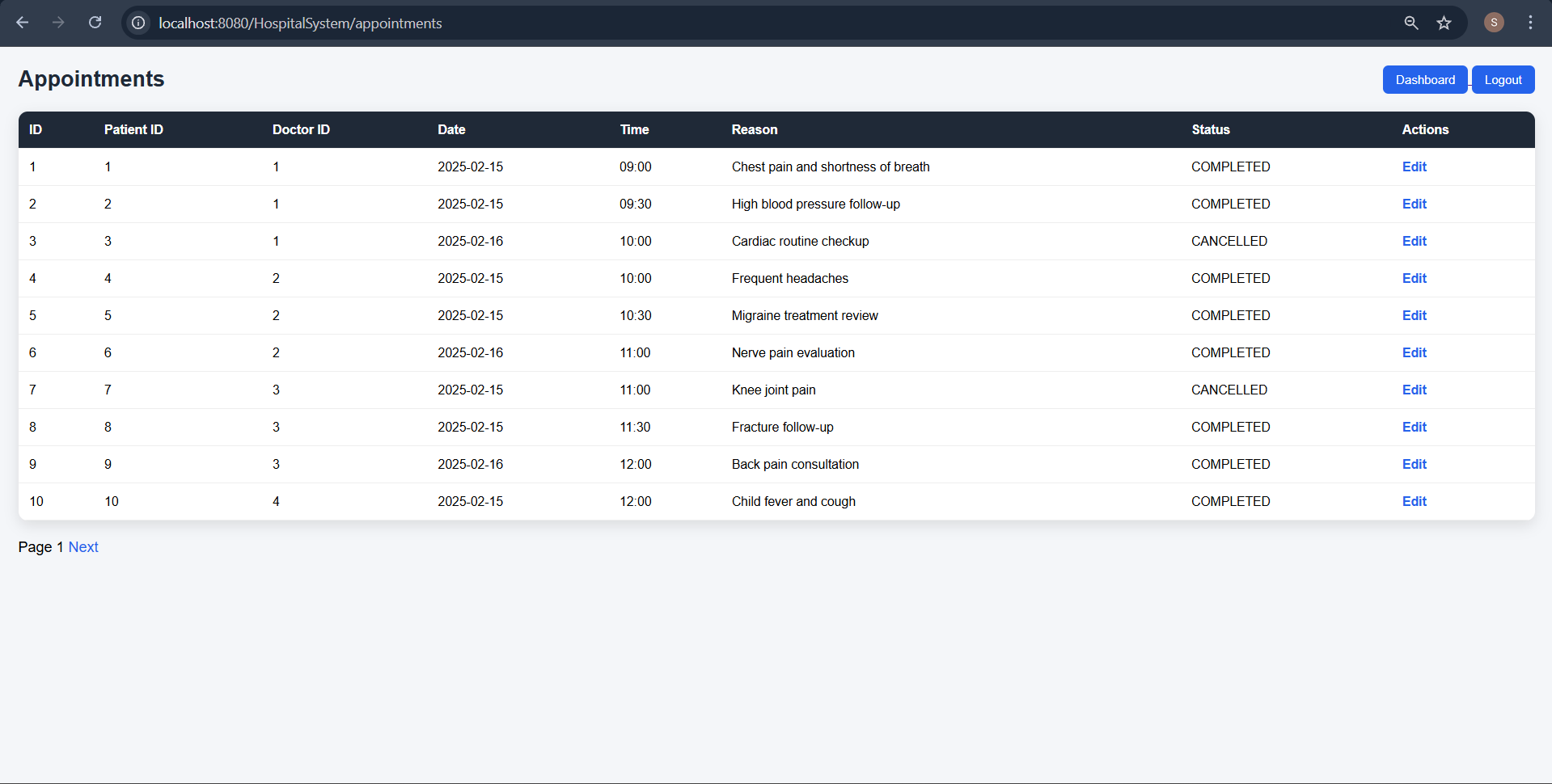

📅 Appointments Management

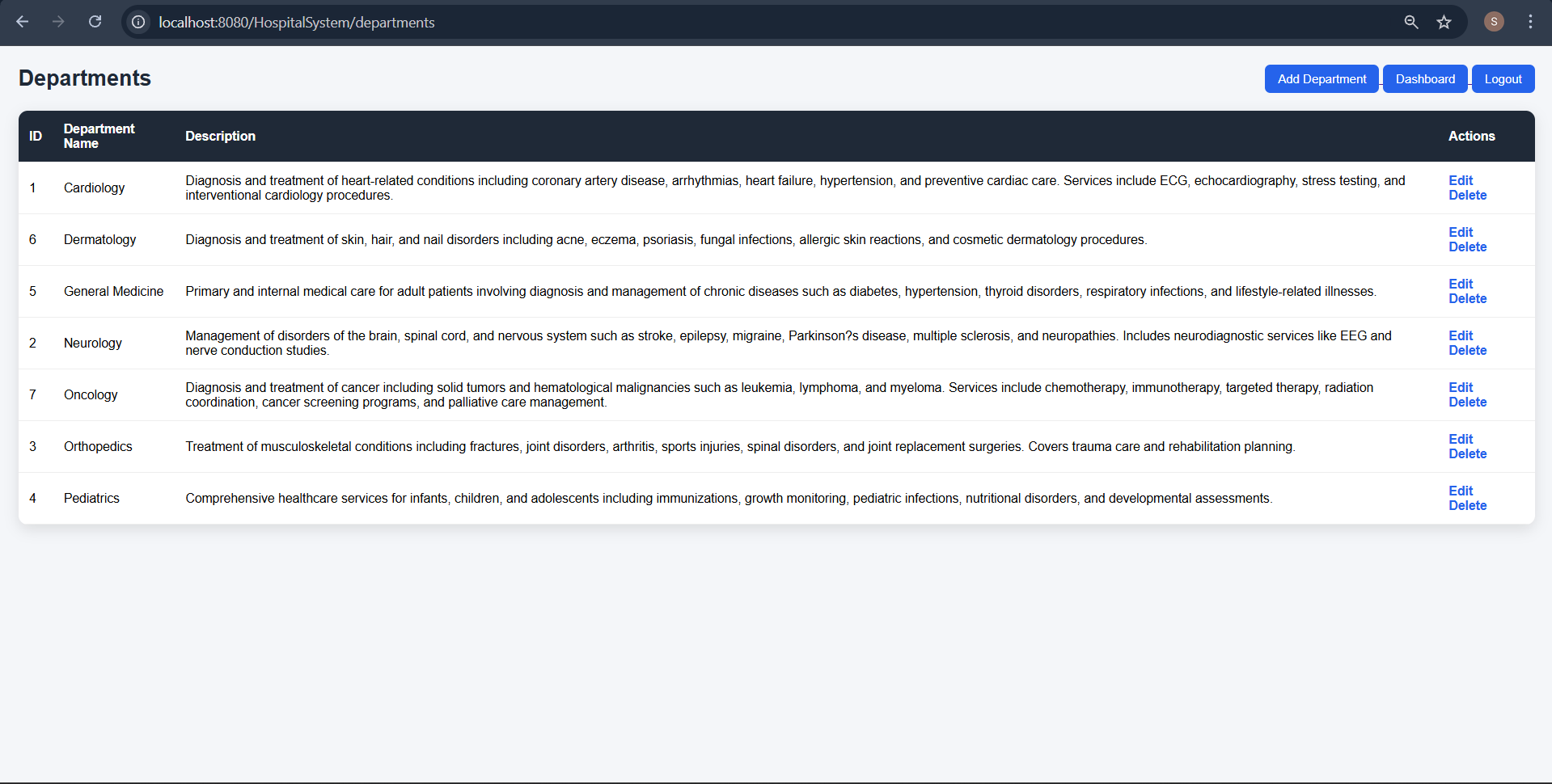

🏥 Departments Management

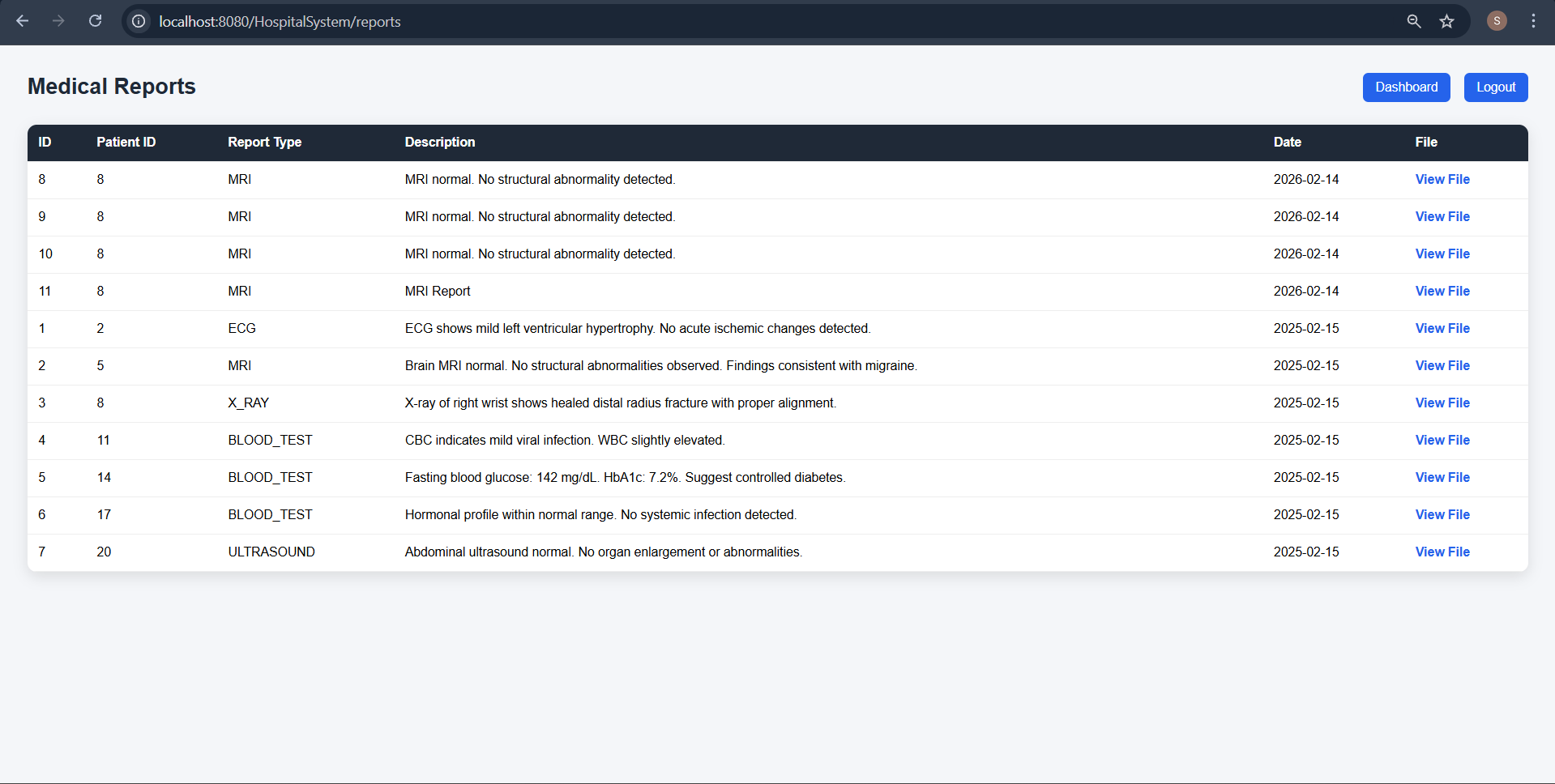

🧾 Medical Reports Module
⚠ Current Limitations
- No pagination implementation
- No PDF/export report generation
- No physical file upload storage
- Direct JDBC (no ORM abstraction)
- Business logic embedded in Servlets (no service layer)
📈 Future Enhancements
- Pagination support
- File-based report storage
- PDF report export
- Spring Boot migration
- REST API layer
- Docker containerization
- CI/CD pipeline integration
- Unit and integration testing
📄 License
Educational and portfolio demonstration project.
